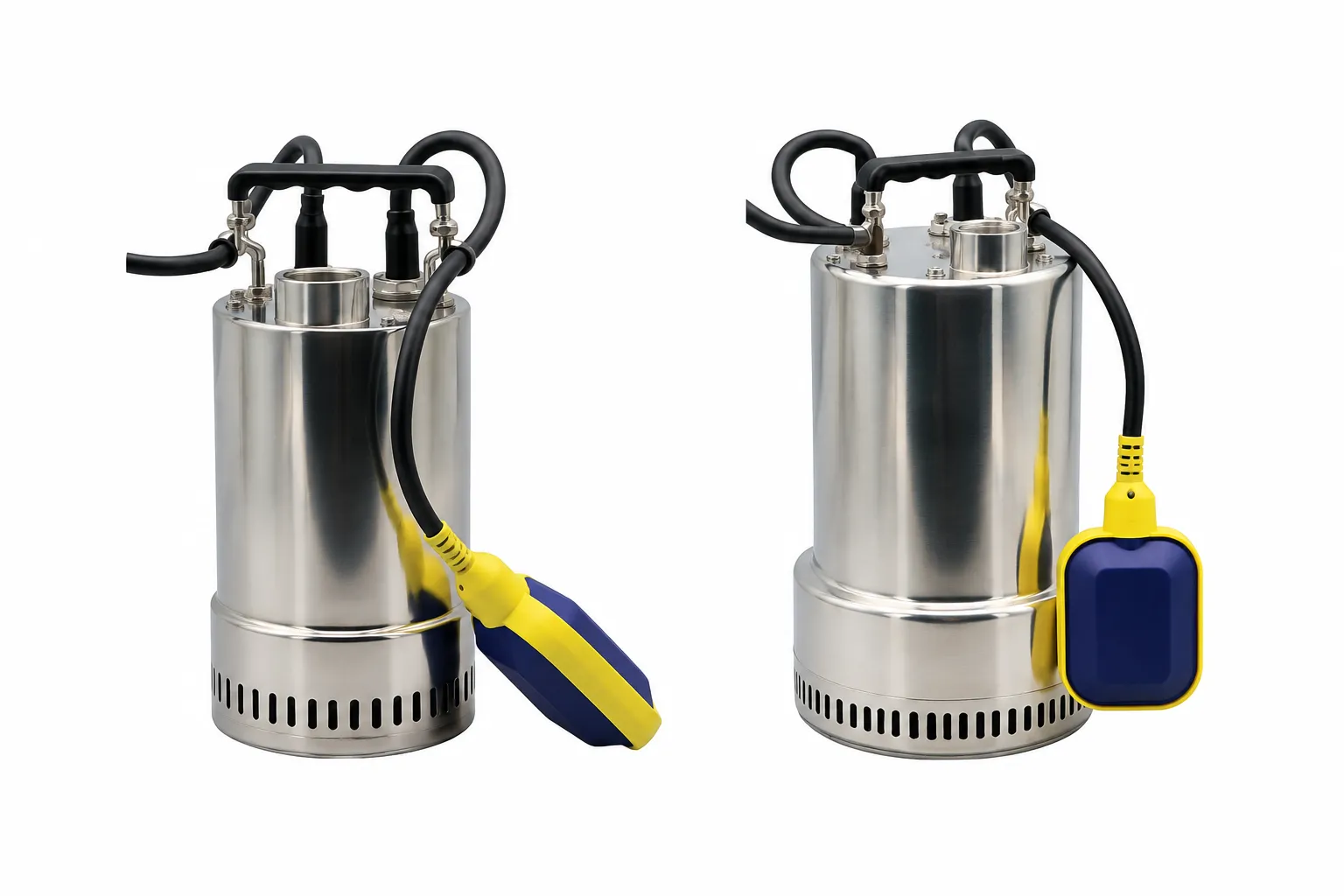

QDX-BS-A Series

Easy installation thanks to 10m power cable with plug. Automatic operation through tethered float switch. Operationally safe thanks to self-switching thermal motor monitoring.
QDX-BS-A Series
Product Selection Series Description Documents
Number of results: 4
Product descriptionOutput powerDischarge
QDX3-5-0.12BS0.12 kwG 1.25"FPDF
QDX3-7-0.18BS0.18 kwG 1.25"FPDF
QDX5-7-0.25BS0.25 kwG 1.25"FPDF
QDX2-30-0.75BS0.75 kwG 1.25"FPDF


Series Description

  • QDX2-30-0.75BS
    QDX2-30-0.75BS
  • QDX-BS A
    QDX-BS A
  • QDX2-30-0.75BS
  • QDX-BS A

Design

Submersible wastewater pump for transportable installation


Application

Drainage of

  • Pump chamber and pump sump

  • Soakaway

  • Flooded basements


Liquid

For the pumping in household areas of:

  • Sewage without faeces

  • Wastewater (with small amounts of sand and gravel)


Materials

  • Pump housing (volute): AISI 304

  • Motor housing: AISI 304

  • Impeller: AISI 304 welding


Specifications

  • Liquid temperature: 104℉(40℃) continuous

  • Motor: B insulation class, IP68 protection

  • Single phase: Build in thermal protector

  • Accessories: Float switch is available
