Can the pumping system run stably for a long time in metro and water utilities?

Yes, it is corrosion and wear resistant, meeting strict working conditions.

Can the pumping system run stably for a long time in metro and water utilities?_copy20260507112426

Yes, it is corrosion and wear resistant, meeting strict working conditions.

Submersible Stainless Steel Pumps Manufacturer

Our pumping systems integrate intelligent control and high-efficiency hydraulic technology for stable operation in various scenarios. Corrosion-resistant and long-life sealing design extends service life. Remote monitoring, autoprotection, energy saving and easy maintenance ensure stable quality and high costperformance for municipal, construction and metro projects.



Various Types of Submersible Stainless Steel Pumps

Submersible Stainless Steel Cutter Pumps

This is a dual-pump parallel intelligent pumping system with integrated valves and enclosures, supporting remote monitoring and automatic control for stable and efficient fluid transfer.

Submersible Stainless Steel Sewage Pumps

This is a dual-pump parallel intelligent pumping system with integrated valves and enclosures, supporting remote monitoring and automatic control for stable and efficient fluid transfer.

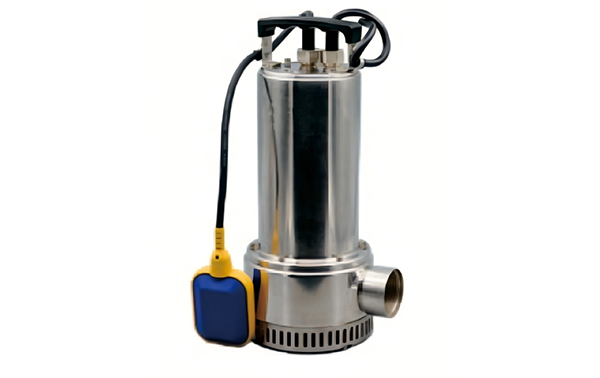

Stainless Steel Submersible Clean Water Pump

Open impeller submersible pumps made of stainless steel AISI 304, designed for clean or slightly dirty water, the suction grid with filter allowing a free solid passage up to 10mm. They are particular...

Key Features of Submersible Stainless Steel Pumps

01

Quality

Full stainless steel construction delivers superior rust and corrosion resistance in a compact, lightweight form factor.
02

Operation

Designed for fully submerged operation, the pump requires no fixed foundation, ensuring straightforward setup and effortless portability.
03

Application

Ideal for residential basement drainage, garden irrigation, aquaculture, and vehicle washing applications.

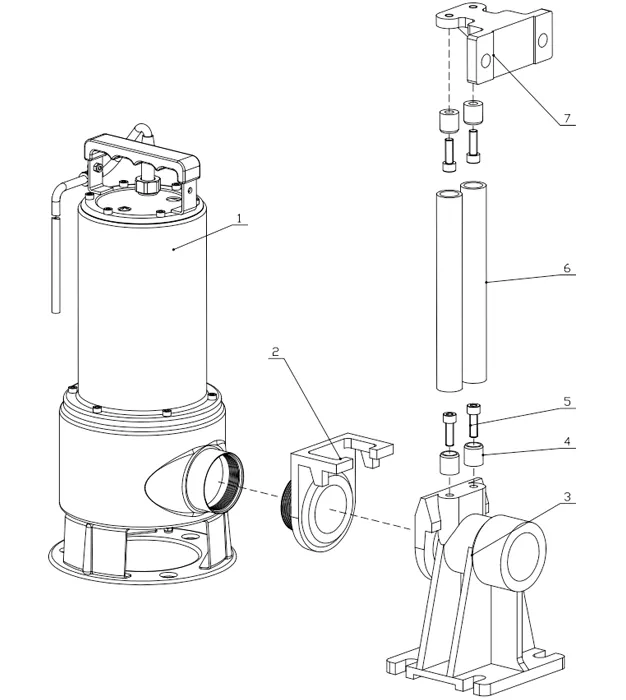

Submersible Stainless Steel Pumps Fixed Installation

Fix the base (No.3), guide rods (No.6), and upper pedestal (No.7) in position as shown; thread the connecting flange (No.2) into the pump (No.1) discharge port and secure; during installation, the pump slides along the guide rods via the connecting flange to achieve coupling.

NO.	Part	Material
1	Pump	/
2	Connecting flange	304
3	Base	304
4	Locator	304
5	Hex head screw M8×25	HT200
6	Guide rod	HT200
7	On the pedestal	HT200

How to Choose FENGQIU CRANE Submersible Stainless Steel Pumps

Pic	Model	Products	Voltage, Frequency	Output Power	Capacitor	Discharge

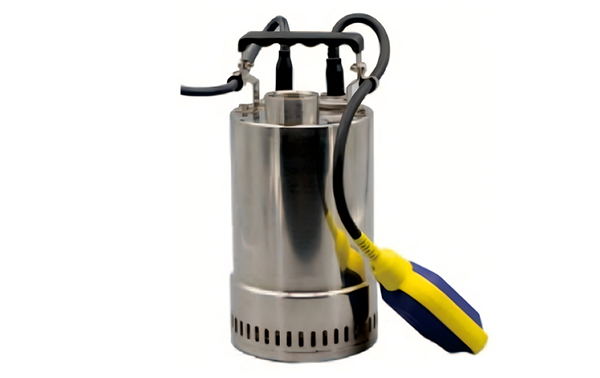

	QDX-BS	Stainless Steel Submersible Clean Water Pumps	220V, 50Hz	0.12kW~1.1kW	8µf~30µf	G 1.25"F~1.5"F
	QDX-B	Stainless Steel Submersible Clean Water Pumps	220V, 50Hz	0.37kW~1.5KW	12.5µf~30µf	G 1.5"F~G 2"F
	QX-B	Stainless Steel Submersible Clean Water Pumps	380V,50Hz	2.2kW	/	G3"F

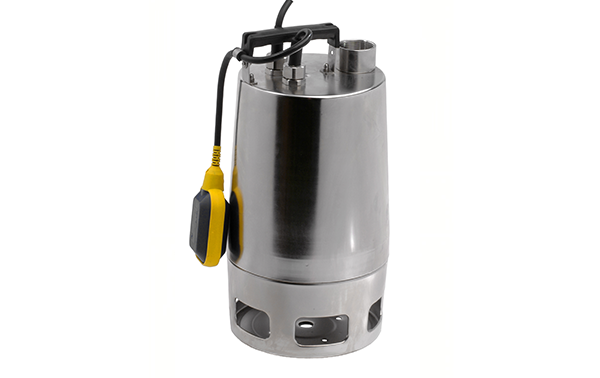

	WQ-BS	Submersible Stainless Steel Sewage Pumps	220V,50H	0.75kW~1.1KW	25μf~30μf	G 1.5"F

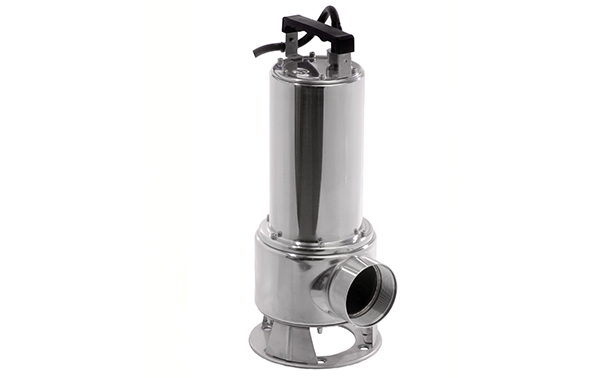

	WQ-B	Submersible Stainless Steel Sewage Pumps	220V~380V,50Hz	0.55KW~2.2kW	16μf~30μf	G 1.5"F~G3"F

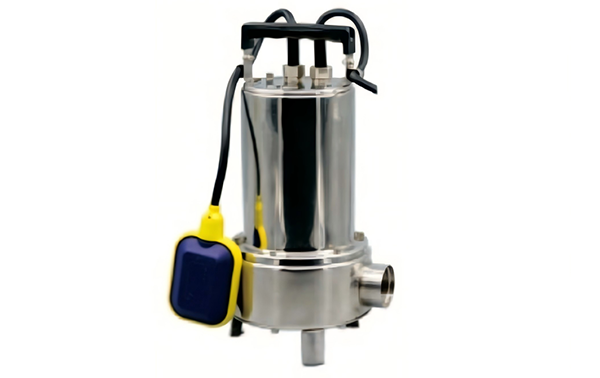

	WQ-B-QG	Submersible Stainless Steel Cutter Pumps	220V~380V,50Hz	0.75kW~2.2KW	25μf~30μf	G 1.5"F~G3"F

FENGQIU CRANE has been providing professional submersible pump products for over 20 years

FENGQIU CRANE is a professional manufacturer of submersible pumps. Don't hesitate to get in touch with us!
