Stainless Steel Submersible Cutter Pumps

Submersible Stainless Steel Cutter Pumps

Scope of Application: Public places: subway projects, hospitals, schools, stadiums, airports, etc.Residential quarters, villas, hotels, office buildings, shopping malls, large sauna baths, etc.



WQ-B-QG A/B

Applications of WQ-B-QG A/B Submersible Stainless Steel Cutter Pump

Stainless steel submersible pumps with multi-channel open impeller with grinding device on suction. The grinder system, consisting of a disk bearing concentric holes with a sharp edge and a triangular cutter of high Chrome steel. This series of submersible pumps, particularly suitable to liquids containing long fibres or filaments or solid destroyable bodied even of big sizes, is mostly used for the treatment of biological liquids and waters of civil origin.

Part Specifications of WQ-B-QG A/B Submersible Stainless Steel Cutter Pump

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers

Motor side: Carbon VS Silicon Carbide

Pump side: Silicon Carbide VS Silicon Carbide

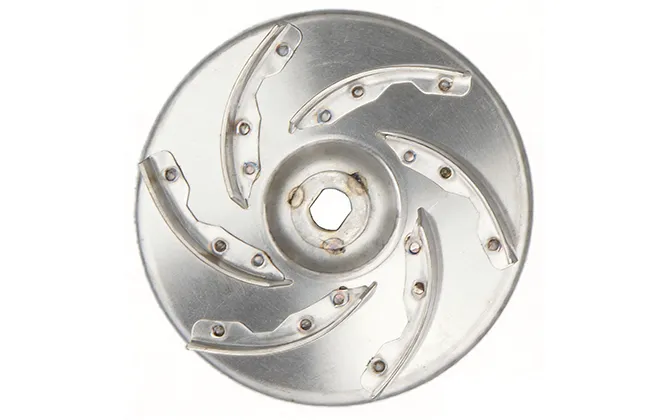

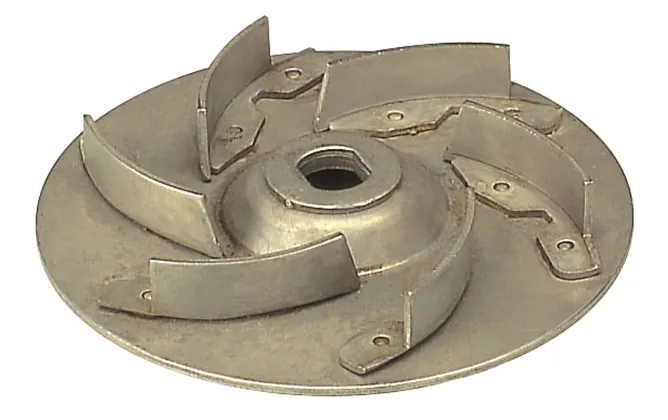

5. lmpeller: AISI 304 welding

6. Pump Casing: AISI 304

7. Shredding ring: AISI 440

8. Grinding ring: AISI 440

Specifications of WQ-B-QG A/B Submersible Stainless Steel Cutter Pump

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40°C) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available

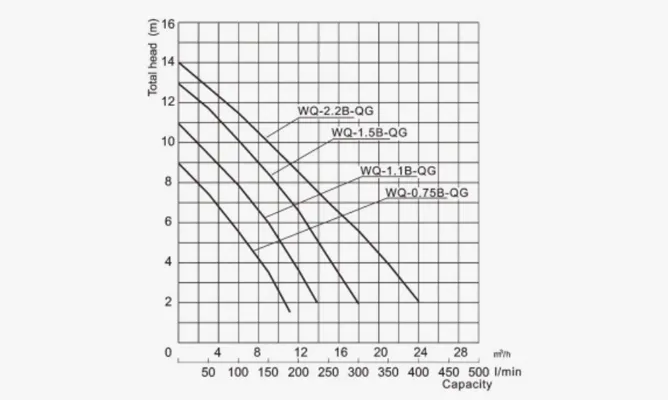

Model	Voltage, Frequency	Output Power	Capacitor	I/min	0	50	100	150	200	250	300
Model	Voltage, Frequency	Output Power	Capacitor	m³/h	0	3	6	9	12	15	18
WQ-0.75B-QG	220V, 50Hz	0.75kW	25 μf	H (m)	9	7.5	5.5	3.5
WQ-1.1B-QG	220V, 50Hz	1.1kW	30 μf		11	9.5	7.5	5.5	2.5
WQ-1.5B-QG	220V, 50Hz	1.5kW	30 μf		13	11	9.5	7.5	5	2
WQ-2.2B-QG	380V, 50Hz	2.2kW	/		14	12.5	11.5	10	8	6	2.5

* Other voltage and frequency are available if required.



Dimensions of WQ-B-QG A/B Submersible Stainless Steel Cutter Pump

Model	A mm	B mm	C mm	D mm	E Discharge	Packing Size (mm)	N.W.
WQ-0.75B-QG	170	195	395	76	G 1.5" F	180 × 250 × 430	16kg
WQ-1.1B-QG	170	195	395	76	G 1.5" F	180 × 250 × 430	17kg
WQ-1.5B-QG	190	201	465	100	G 2" F	210 × 250 × 500	20kg
WQ-2.2B-QG	190	225	470	110	G 3" F	210 × 250 × 500	23kg



Exploded View of WQ-B-QG Submersible Stainless Steel Cutter Pump

NO.	Part	Material
1	Pump cover	304
2	Gasket	NBR
3	Float switch	/
4	Capacitor	/
5	Motor housing	304
6	Upper bearing plate	HT200
7	Stator	/
8	Bearing	/
9	Rotor	/
10	Bearing	/
11	Cable cord	/
12	O ring	NBR
13	Bearing press plate	Q235A
14	Lower bearing plate	HT200
15	O ring	NBR
16	Mechanical seal	C/ceramic;SiC/SiC
17	Oil chamber	304
18	Impeller	304
19	Volute casing	304
20	Discharge elbow	PA66+30GF
21	Gasket	NBR
22	Base	304
23	Shredding ring	9Cr18
24	Radial cutter	9Cr18
25	Impeller press plate	304


FENGQIU CRANE has been providing professional submersible pump products for over 20 years

FENGQIU CRANE is a professional manufacturer of submersible pumps. Don't hesitate to get in touch with us!
