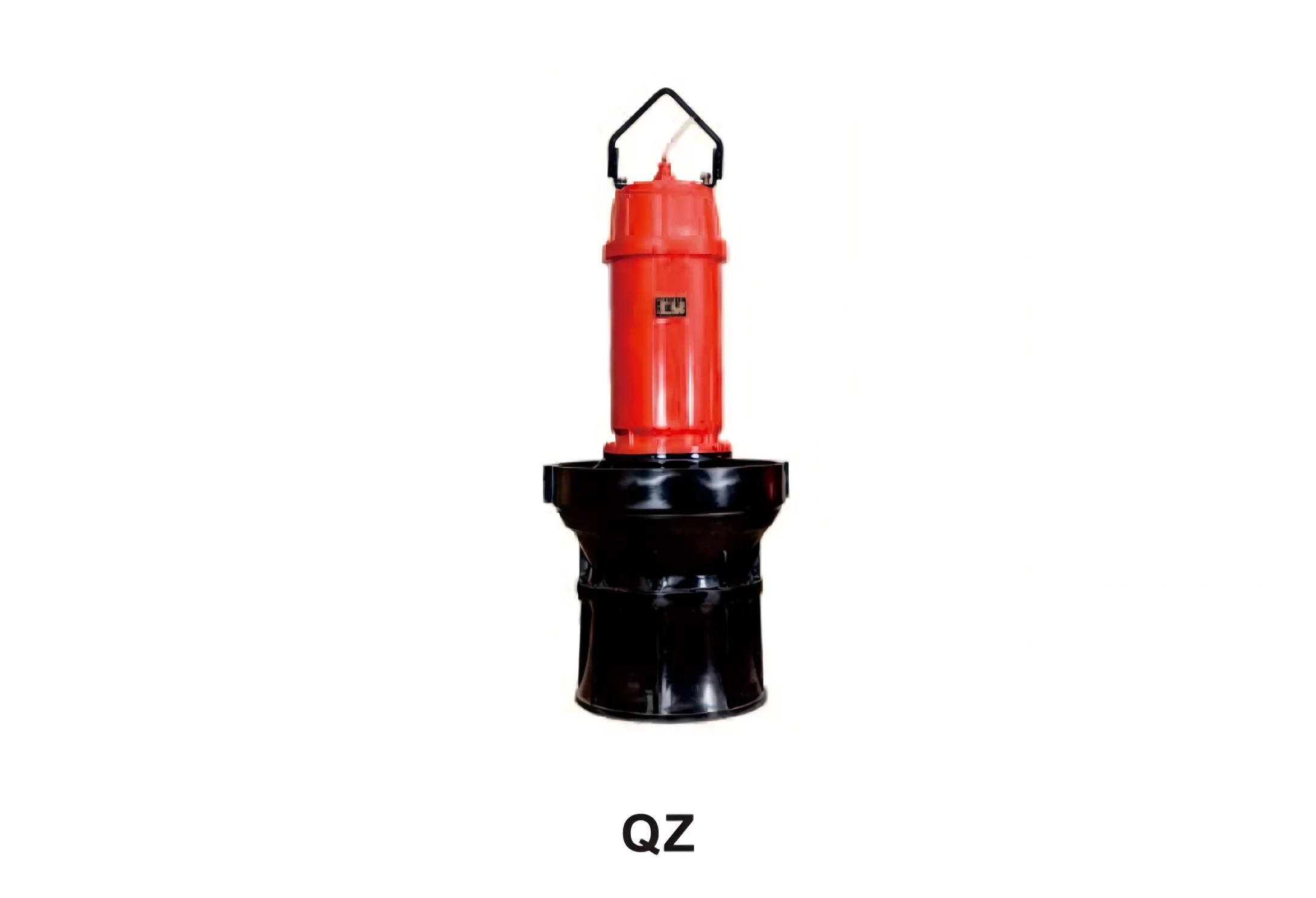

Name: Qz Submersible Axial-Flow Pumps
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO.,LTD.
Availability: InStock

With complete control and protection functions, the pump is equipped with alarm & protection systems for water leakage, oil leakage, overheating, overload and bearing over-temperature, as well as the automatic control system for liquid level, able to carry out the automatic control and effective protection for the operation state of the pump.



Applications of QZ Submersible Axial-Flow Pumps

Widely used for industrial & agricultural water delivery, flood & waterlogging control projects, and sewage treatment projects, regarded as the upgrading product of vertical-type axial-flow pumps and vertical-type mixed-flow pumps.

Specifications of QZ Submersible Axial-Flow Pumps

1. Power: 7.5~355KW

2. Flow: 450~13800m³/h

3. Outlet Diameter: 350~1600mm

4. Head: 1.4~12m

Product Features of QZ Submersible Axial-Flow Pumps

Achieve the motor-pump integration, able to carry out the submersible operation, so as to greatly simplify the civil engineering of pump stations and pump room structure, reduce the pump room area, and save 30-40% project cost.

Adopt the special long and thin motor. The liquid delivered flows around the motor enclosure, so as to achieve excellent motor cooling conditions.

Have low noise to improve the working conditions and living conditions of pump stations and their surrounding environments. The whole underground pump station may be constructed, so as to maintain the ground surface environment.

Due to the motor-pump integration, there is no need of on-site time-consuming installation & assembly procedures on aligning the shaft to the center, so as to achieve convenient and quick installation. Operation and maintenance are very convenient. Only need to hoist the whole pump out and put it on the designated position. The water pump may carry out the auto-coupling and installation with the shaft, which has no effect on the work of the pump station, and improves the maintenance conditions, so as to meet the demands of emergency drainage projects and high-efficiency pump stations.

Thoroughly solve the problem that the motor of the pump station is submerged in the riverside and lakeside areas with large water level change.
