Name: Waste Water Lifting System
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO.,LTD.
Availability: InStock

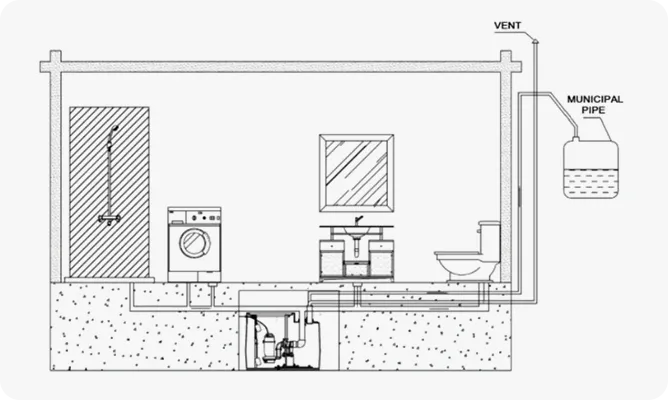

Ideal for basement bathrooms, laundry rooms, and commercial spaces where gravity drainage is impossible. It efficiently lifts wastewater from toilets, sinks, and showers to higher discharge points, enabling flexible bathroom placement during renovations



CFWT
CFWT-J

Overview of CFWT 150/250/600 Waste Water Lifting System

Pre-assembled grinding system capable of discharging waste water from multiple fixtures, including the toilet, bathtub, dishwasher, sink, shower, bar sink, laundry sink etc., It can be installed above the floor, inside a pit. The powerful 1-2 HP motor for absolute reliability and efficiency that can handle up to 110 gallons(416 liters) per minute from several fixtures. The grinder system is ideal to handle sanitary products that may have been flushed.

Key Features of CFWT 150/250/600 Waste Water Lifting System

Incorporates a grinder system ideal for uncontrolled environments as it is designed to handle sanitary products.
Capable of discharging through a 1.5 inch diameter pipe up to 60 feet(18.2m) vertical.
Smart pump technology allows the discharge to increase up to 110 gallons(416 liters) per minute
For installations above and below ground as required in various applications.
The new slicer cutter is constructed from hardened stainless steel, the grinder blade rotates against a stationary. perforated base plates, so that waste is quickly and easily dispersed through the base plate's holes before being pumped into the 1.5 inch discharge line.



Technical Data & Parameters of CFWT 150/250/600 Waste Water Lifting System

		Voltage(V)	Current(A)	Power(KW)	Freq.(HZ)	Flow(m3/h)	Head(M)
FC2-230	one pump work	230	11.3	2.5	60	7.2	25
FC2-230	two pumps work	230	20	4	60	10	25
WQ1100SQG	one pump work	220	5.6	1.25	50	7	13.6
WQ1100SQG	two pumps work	220	10	2	50	10	13.6
FC1-115	one pump work	115	11.4	1.25	60	4.6	10.5
FC1-115	two pumps work	115	20	2	60	7	10.5
WQd10-7-0.75QG	one pump work	230	3.4	0.57	50	10	6.2
WQd10-7-0.75QG	two pumps work	230	5	1.5	50	16	6.2
FC05-115	one pump work	120	4.5	0.75	60	4.3	6.5
FC05-115	two pumps work	120	7	1	60	6	6.5

Specifications of CFWT 150/250/600 Waste Water Lifting System

Model	Power Supply	Capacity	Dimension	Weight(No Pump)
CFWT150	200~240 V, 50/60 Hz	148L	590×470×700mm	11.8kg
CFWT250	200~240 V, 50/60 Hz	227L	900×470×700mm	18kg
CFWT600	200~240 V, 50/60 Hz	500L	570×870×960mm	30kg

Overview of CFWT-J Waste Water Lifting System

We offers a solution to the residential market for new or existing sewer needs, the CFWT-J grinder pump system preserves groundwater ecology by collecting and grinding residential sewage in an underground basin and transmitting the waste under pressure to a remote private or municipal waste treatment plant. The systems is factory assembled for quicker, easier installation at the jobsite, the grinder pump station is a complete unit that includes: the grinder pump, check valve, HDPE (high density polyethylene) tank, controls, and alarm panel, guide rail system, special piping. It is a complete turnkey package, a very good choice for one single-family home.

Key Features of CFWT-J Waste Water Lifting System

90 gallons (340 liters) capacity
3 great grinder pump choices
Indoor or outdoor installation
Simple installation

Technical Data & Parameters of CFWT-J Waste Water Lifting System

Pump Type - Grinder Pump, with S.S Grinder Blade

Three models for your applications:

A. High Head - FNG2-21C

B. High Flow - FC2-21

C. High Efficiency - FC2-23

Electrical Ratings - See Chart

Motor - 2 HP, oil-filled, thermally protected motor

Basin - Fengqiu Crane Company stocks many different basin and cover options to fit a multitude of wastewater collection projects.

Basin sizes from 24" x 48" to 48" x 120" meet most application needs. Customized packages available.

Basin Cover - Solid fiberglass

Pipe Seal Hub - A4" pipe seal is provided as a convenient field-installed inlet hub.

Inlet Connection - 4 inches.

Discharge Connection - Pump discharge terminates in a 1.25-inch NPT female thread. Can easily be adapted to 1.25-inch PVC pipe orany other material.

Specifications of CFWT-J Waste Water Lifting System

Pump Models	Dimension	Vol. (A)	Amps (A)	Power (kw)	Freq. (Hz)	Flow max (m³/h)	Head (m)	Weight (No Pump)
FNG2-21C/60HZ	250×195×540mm	230	9.5	2.2	60	3.6	30	31kg
FNG2-21C/50HZ	250×195×540mm	230	6.5	1.5	50	3	26	31kg
FC2-21C	252×195×580mm	230	10.8	2.4	60	8	27	32.5kg
FC2-230	252×195×580mm	230	11.3	2.5	60	7.2	25	32.5kg


