Name: Internal Circulation Cutting Pump
Brand: FEGNQIU CRANE(ZHEJIANG) PUMP CO., LTD.
Availability: InStock

This sewage pump adopts an innovative internal circulation structure design, which can flexibly adapt to various working conditions. It supports both dry installation and submerged installation, meeting the needs of different application scenarios.

Overall, this product is an outstanding high-flow cutting sewage pump suitable for various harsh working conditions. Its superior performance has been widely praised by customers after on-site practical application verification.



FWQN

Product Features of FWQN Internal Circulation Cutting Pump

The pump body is equipped with a forward-extended vortex impeller with a double-blade structure, perfectly integrating the high efficiency of blade impellers and the high throughput of channel impellers, and featuring excellent hydraulic performance and anti-clogging capability.

The impeller is of a semi-open design and is equipped with a high-precision mating insert ring structure. The material is made of high-hardness alloy, which is wear-resistant and durable.

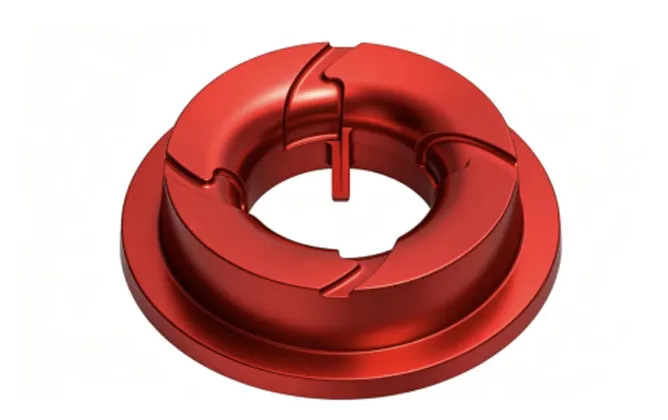

The specially designed cutting edge and drainage slot on the insert ring, in combination with the high-precision mating clearance, can effectively cut and smoothly pass through easily entangled substances in the medium, and at the same time form a secondary cutting effect. This structure can also effectively prevent sedimentation and adhesion layer formation in the impeller's central area, significantly enhancing the pump's operational stability and reliability under complex medium conditions.

Dimensions of FWQN Internal Circulation Cutting Pump

Model	Voltage	Power	Phase	Frequency	Pole	A	B	C
FWQN60-20-7.5	380V	7.5	3	50HZ/60HZ	4	903	550	344
FWQN100-15-7.5	380V	7.5	3	50HZ/60HZ	4	903	550	344
FWQN150-15-15	380V	15	3	50HZ/60HZ	4	1268	578	496

Note:

1. This series of pumps can be customized with parameters. Welcome to consult.

2. This series of pumps can be designed for horizontal installation or vertical installation.


